| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | MG10 |

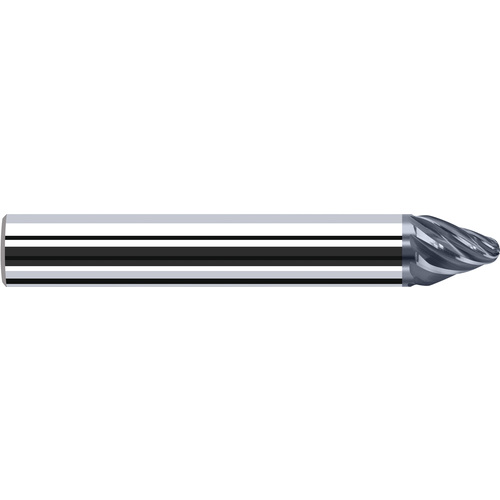

| Depth of Cut Maximum (APMX) | 18.5 mm | Tool Type | Square Endmill |
| Overall Length (OAL) | 108 mm | Length Group | Standard |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlCrN | Measurement Type | Metric |
| Flute Count (NOF) | 8 | Series/List # | ArCut X |
| End Shape | Circle Segment Taper Form | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.696
