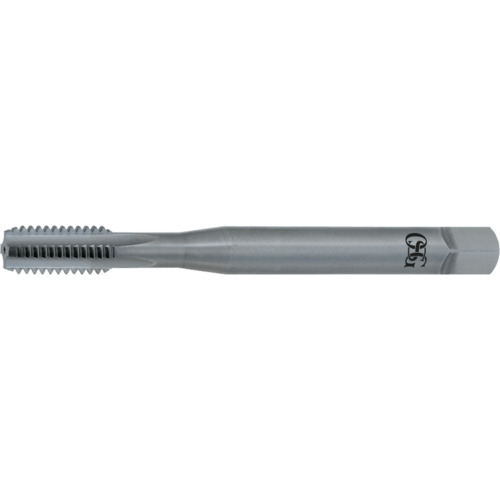

| Thread Diameter Size (TDZ) | M10 | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1.5 mm | Thread Tolerance Class (TCTR) | 6H |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 74 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 18 mm | Style | Bottoming |
| Usable Length (LU) | 32 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm | Series/List # | 10061 |
| Flute Count (NOF) | 4 | Thread Size | M10 × 1.5 |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.05000
Package Width
.65000
Package Height
.55000
Package Weight
.1350
