ICP 0654-2M IC908

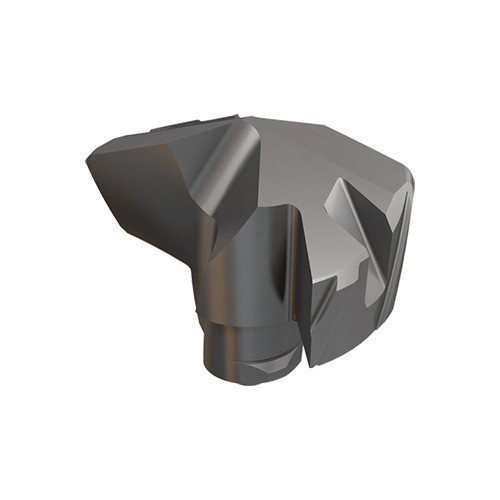

Drill Head; 0.654″ Dia. × 0.366″ Thickness ; 140 Degrees ; IC908 ; Carbide ; TiAlN
Price: Log in For Price

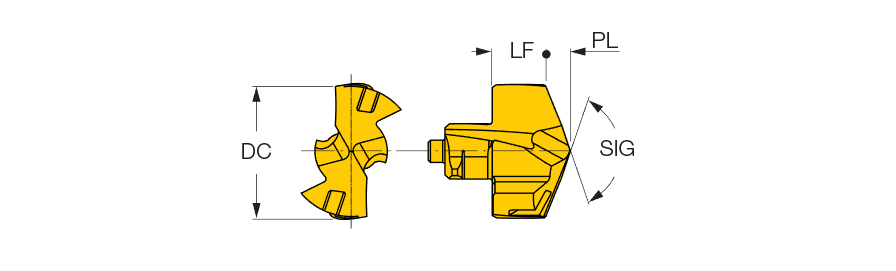

| Cutting Diameter (DC) | 0.654″ | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | Chamfering | Drilling | Gundrills | | Insert Thickness (S) | 0.366″ |
| Grade | IC908 | Point Length (PL) | 0.0996″ |
| Tool Type | Drilling Heads | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 0.366″ | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 16.0 | Body Material | Carbide |
| Functional Length (LF) | 0.267″ |
Product Features
| Family Description | Exchangeable double margin drilling heads for DCN drills, for machining ISO P materials with high surface finish results (up to 1.6 Ra). | Country of Origin | Israel |
| Remarks | Provides high surface finish of up to 64 microinches Ra hole cylindricity and straightness of up to.002 |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.037
