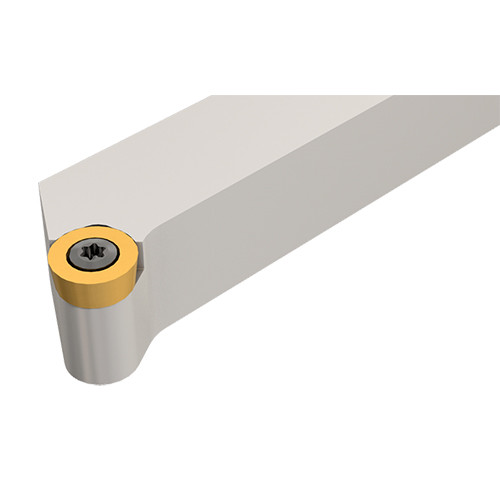

SRGCL 08-08
Screw lock tools carrying round inserts with 7° clearance angle.
Price: Log in For Price

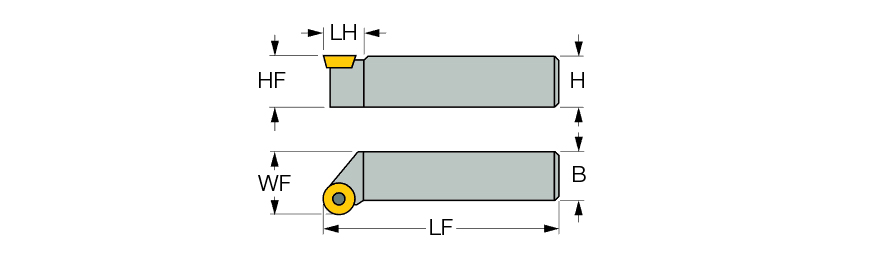

| Shank Height (H) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Width (B) | 1/2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 3-1/2″ | Body Material | Steel |
| Head Length (LH) | 0.44″ | Cutting Position | External |
| Functional Width (WF) | 0.63″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.315″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | RC.. 08 | Insert Style | 3.5″ |
| Application | | Ext. Round Face & Turn | |
Product Features
| Family Description | Screw lock tools carrying round inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.287
