NQCH16-PCLXR-09XS-JHP

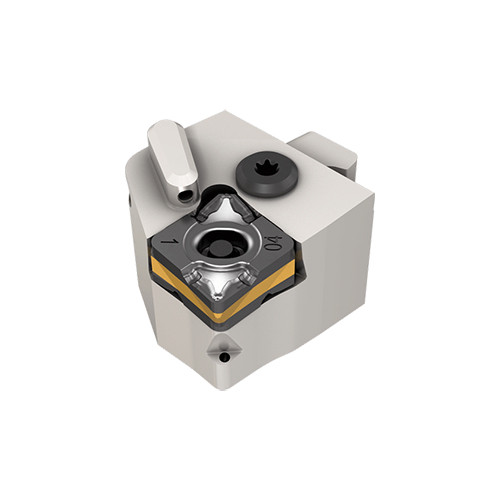

Lever Lock JETCUT Modular Heads Carrying Positive Double-Sided 80° Rhombic Inserts for Swiss-Type Machines
Price: Log in For Price
| Overall Length (OAL) | 1.134″ | Application | | Ext. 80° Diamond 95° Approach | |
| Head Length (LH) | 0.787″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Width (WF) | 0.636″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Inscribed Circle Diameter (IC) | 0.368″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Tool Type | Square Shank Turning Tools |
| Master Insert Identification (MIID) | CXMG 0904# | Measurement Type | Inch |
Product Features
| Family Description | Lever Lock JETCUT Modular Heads Carrying Positive Double-Sided 80° Rhombic Inserts for Swiss-Type Machines | Country of Origin | Israel |
| Remarks | Use only RH Shank with RH Head and LH Shank with LH Head |
