DGAQ D52-4-2Z-JHP

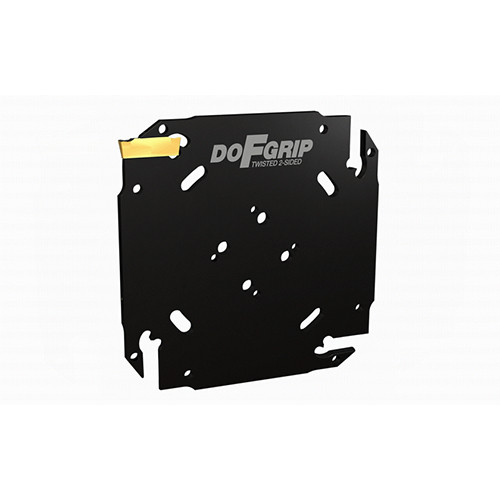

Parting and grooving square adapters with internal coolant holes carrying DO-GRIP inserts.
Price: Log in For Price

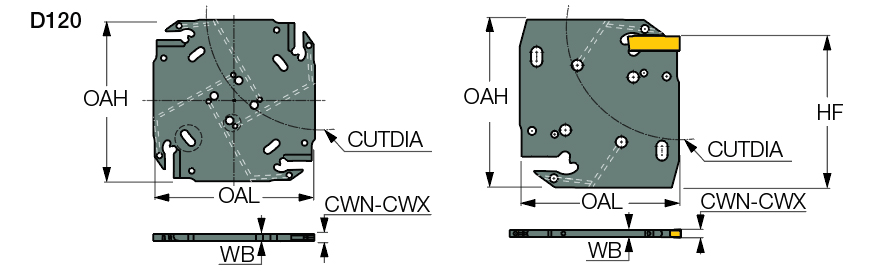

| Body Width (WB) | 0.126″ | Application | | Ext. Grooving | Parting | |
| Cutting Width Minimum (CWN) | 0.157″ | Shank Standard | Square |
| Cutting Width Maximum (CWX) | 0.157″ | Body Material | Steel |
| Overall Length (OAL) | 1.968″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.047″ |
| Overall Height (OAH) | 1.968″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
Product Features
| Family Description | Parting and grooving square adapters with internal coolant holes carrying DO-GRIP inserts. | Country of Origin | Israel |
| Remarks | When using .079 and .118 double-sided inserts, the depth of cut is limited up to .75. For larger depth, use a DGNM type single-ended insert. |
Shipping Info
Package Weight
0.240
