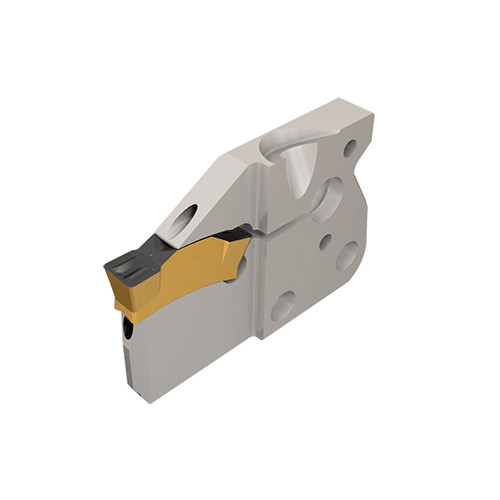

TGPAD 6L-T22-JHP
TOP-GRIP adapters with channels for high-pressure coolant carrying TGMF / TGMP groove-turn inserts.
Price: Log in For Price

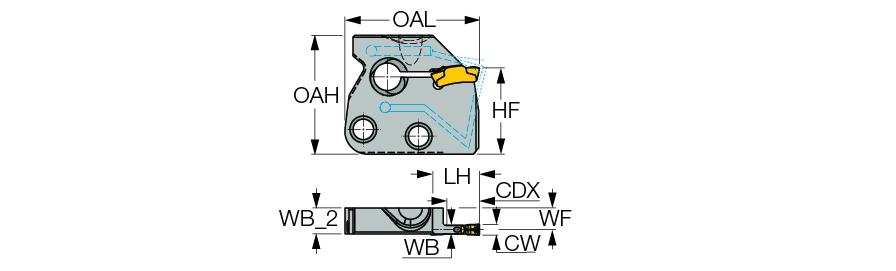

| Cutting Width Minimum (CWN) | 0.236″ | Overall Length (OAL) | 1.854″ |
| Cutting Width Maximum (CWX) | 1/4″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.866″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Body Width (WB) | 0.236″ | Body Material | Steel |
| Functional Width (WF) | 0.138″ | Measurement Type | Inch |
| Head Length (LH) | 0.913″ |
Product Features
| Family Description | TOP-GRIP adapters with channels for high-pressure coolant carrying TGMF / TGMP groove-turn inserts. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
0.119
